• Cutting-edge 4G network – share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps*

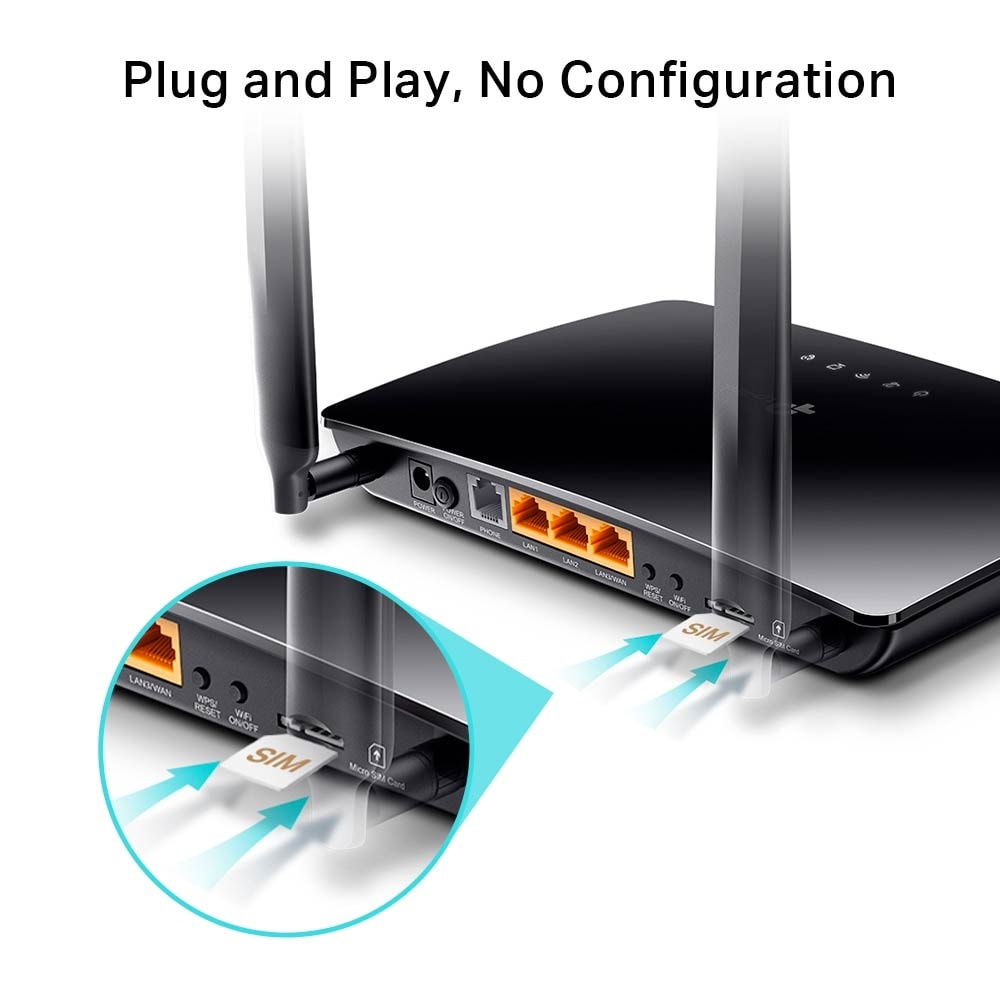

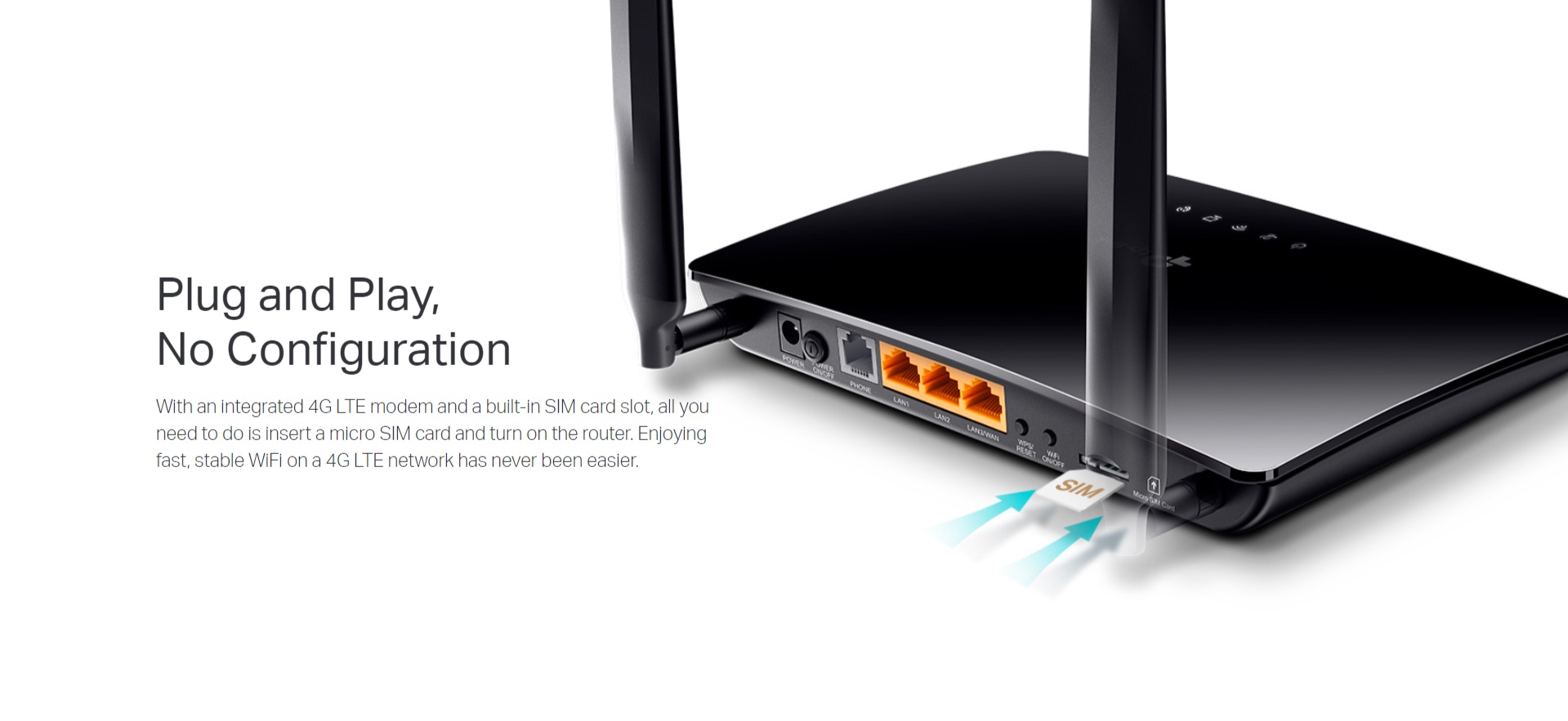

• Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
• WiFi speeds up to 300 Mbps – enjoy uninterrupted HD movies, rapid file downloads, seamless video chats, and more at the same time*
• Professional voice functions – supports VoLTE/CSFB/VoIP functions and provides 50 MB of internal storage for 100 minutes of voicemail
• Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
• Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access if you can’t get a 4G connection

Share your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps Wireless N speeds of up to 300Mbps Integrated antennas provide stable wireless connections Requires no configuration – just insert a SIM card and turn it on to enjoy high speed internet access LAN/WAN port provides options and flexibility, allowing you to choose your connection type HARDWARE FEATURES Interface 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot Button WPS/Reset Button, Wireless On/Off Button, Power On/Off Button External Power Supply 12V/1A Dimensions ( W x D x H ) 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm) Antenna Type 2 Internal Wi-Fi Antennas, 2 Detachable External 4G LTE Antennas WIRELESS FEATURES Wireless Standards IEEE 802.11b/g/n 2.4GHz Frequency 2.4GHz Signal Rate 300Mbps at 2.4GHz Reception Sensitivity 11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm Transmit Power CE: <20dBm(2.4GHz) Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions Network Type (V2) T4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) Network Type 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) TDD-LTE B38/B40 (2600/2300MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) 2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) SOFTWARE FEATURES Quality of Service Not Available Operating Modes 3G/4G Router, Wireless Router Management Access Control, Local Management, Remote Management WAN Connection Type Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) DHCP Server, Client, DHCP Client List, Address Reservation Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS DynDns, NO-IP VPN Pass-Through PPTP, L2TP, IPSec Access Control Parental Control, Local Management Control, Host List, Access Schedule, Rule Management Firewall Security DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding Protocols Supports IPv4 and IPv6 Guest Network 2.4GHz guest network x 1 OTHERS Certification CE, FCC, RoHS Package Contents 300Mbps Wireless N 4G LTE Router, TL-MR6400 RJ45 Ethernet Cable Power Adapter Quick Installation Guide Micro to Standard SIM Card Adapter Nano to Standard SIM Card Adapter System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browsers or higher, or other Java-enabled browsers SIM Card Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
